CS A 100~200 W A
chunshucooling
8415822090
一体式壁挂储能方舱变频空调，供电方式采用三相交流380V，一体化安装，上出风结构设计。具备制冷、加

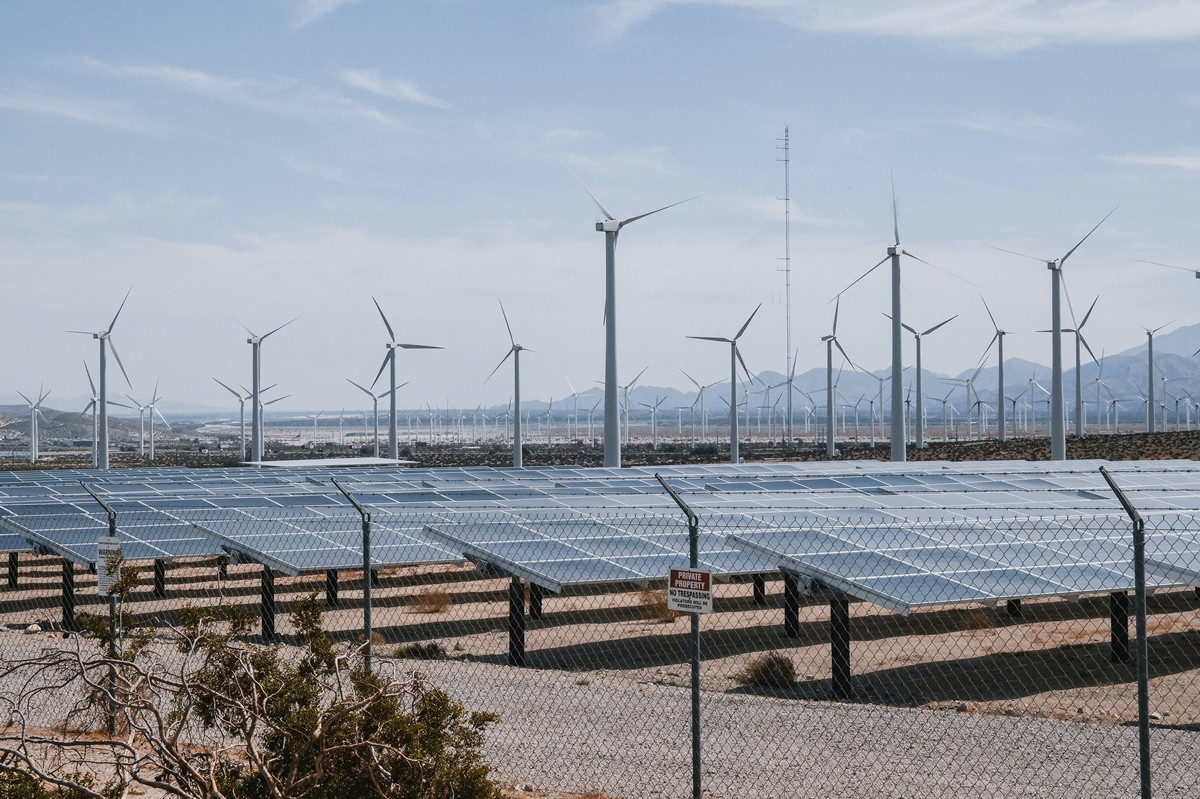

热、除湿功能。实现遥测、遥信、遥调，可实现多重自动保护和全面的故障自诊断功能。适用于室外锂电、光
伏、转轮储能，光伏风力发电，设备预制舱等需要散热的领域和场合。
产品特点：

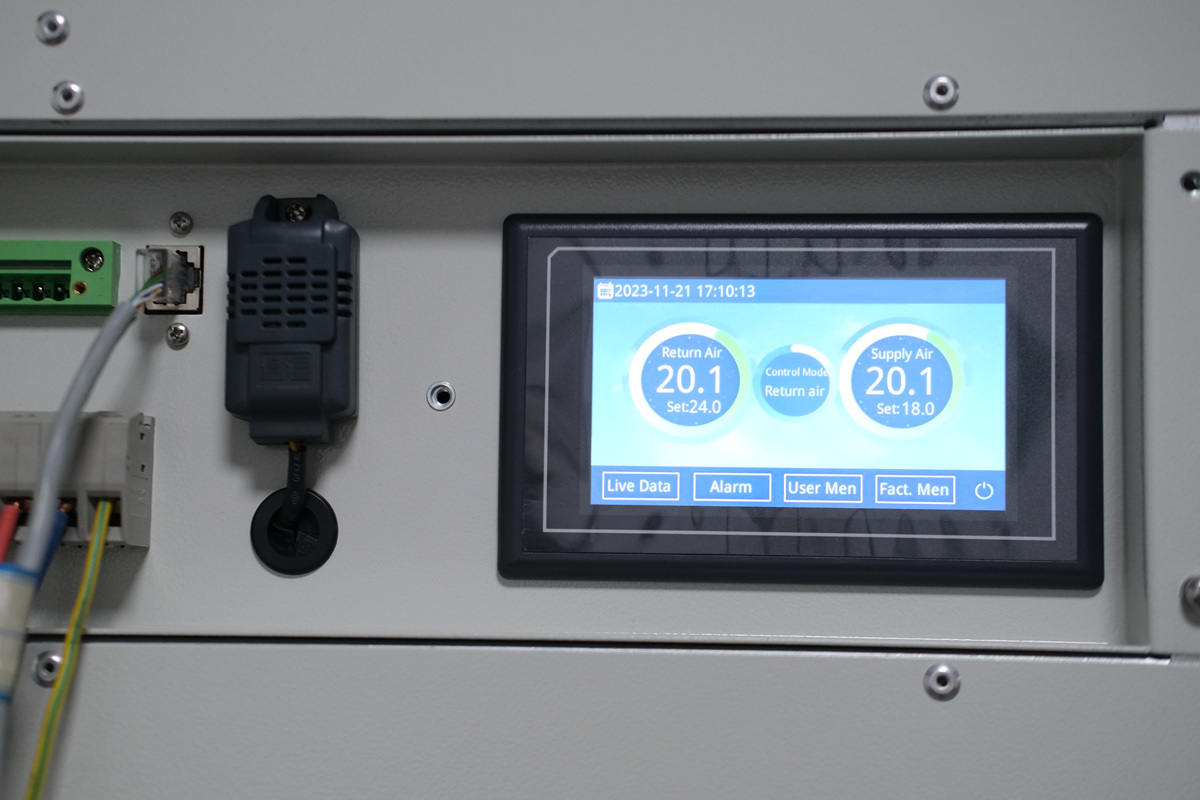

微电脑处理器智能温控，可实现遥测、遥信、遥调，可实现多重自动保护和全面的故障自诊断功能；
具备制冷、加热，除湿功能；
大风量，小温差，温度更均匀；
告警输出，RS485通讯，多台联动；

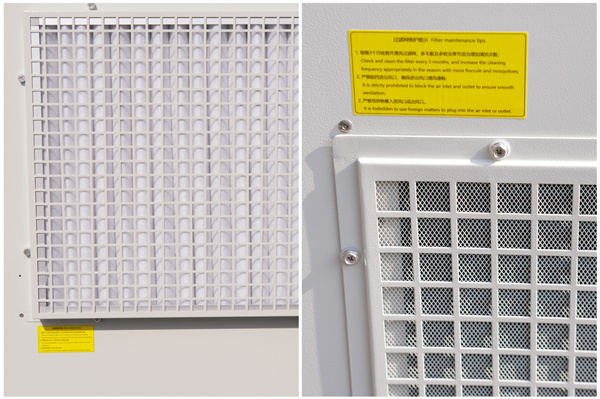

增加防尘网，安装维护简单，正面维护；
高防护等级，适用于户外恶劣环境

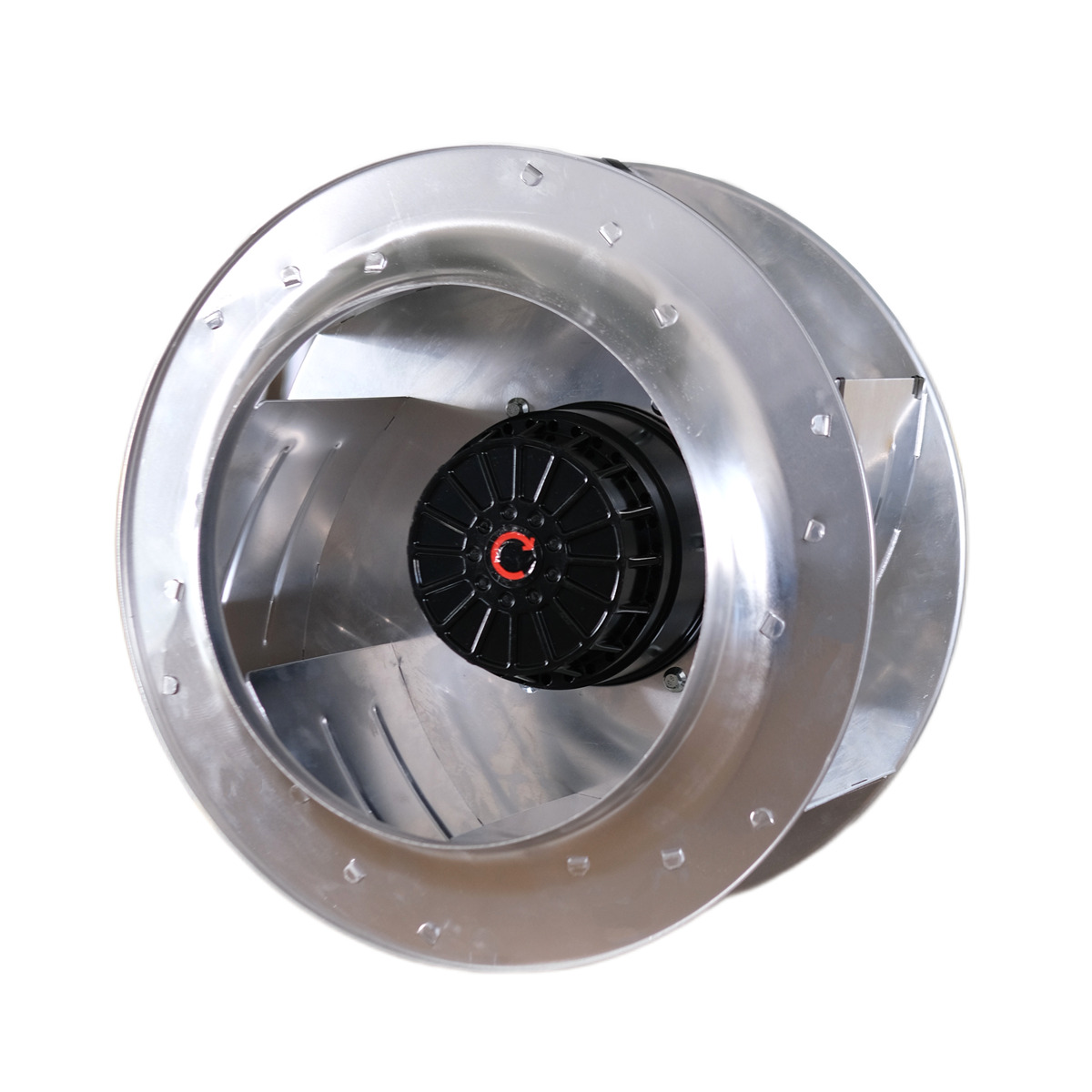

关键配置

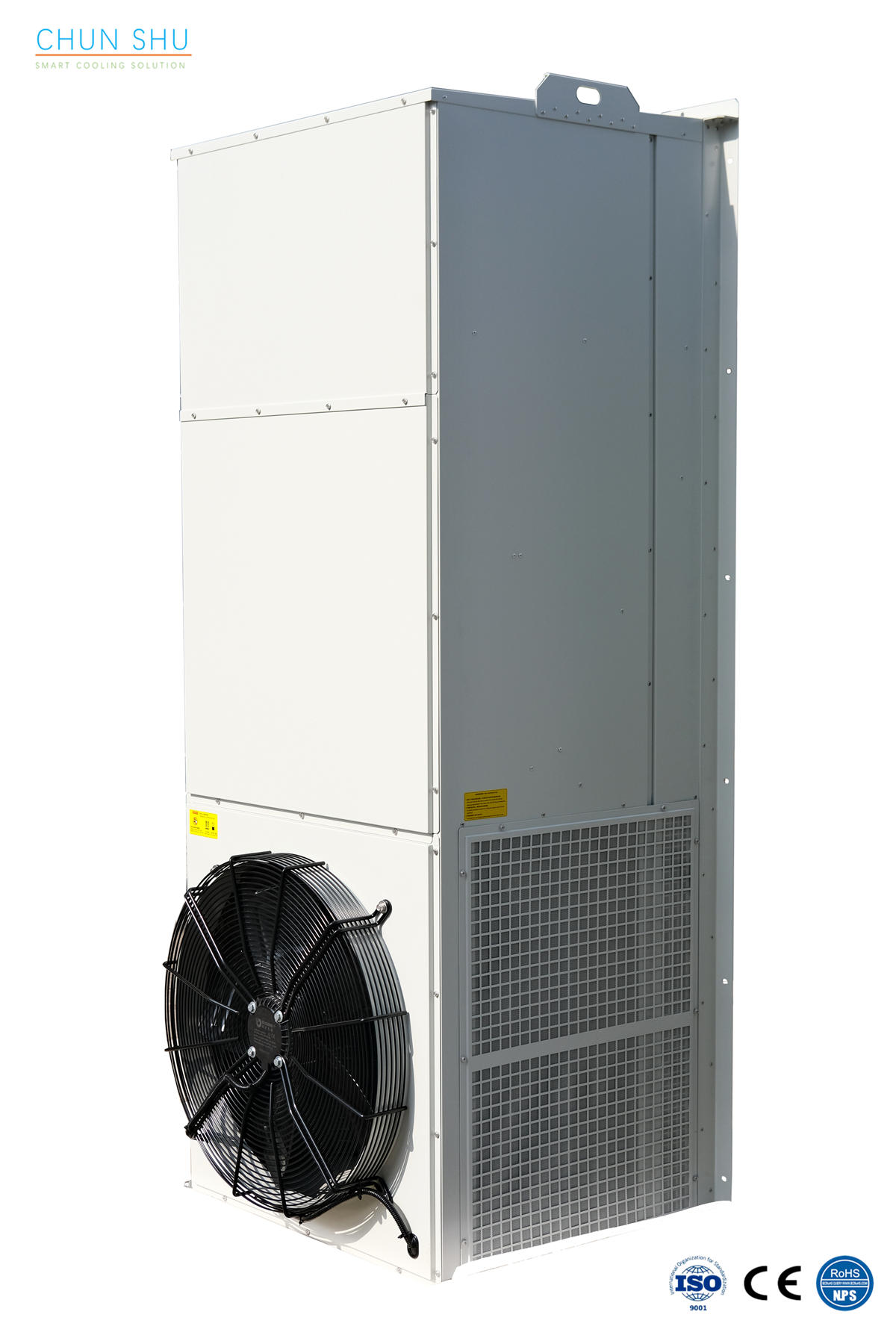

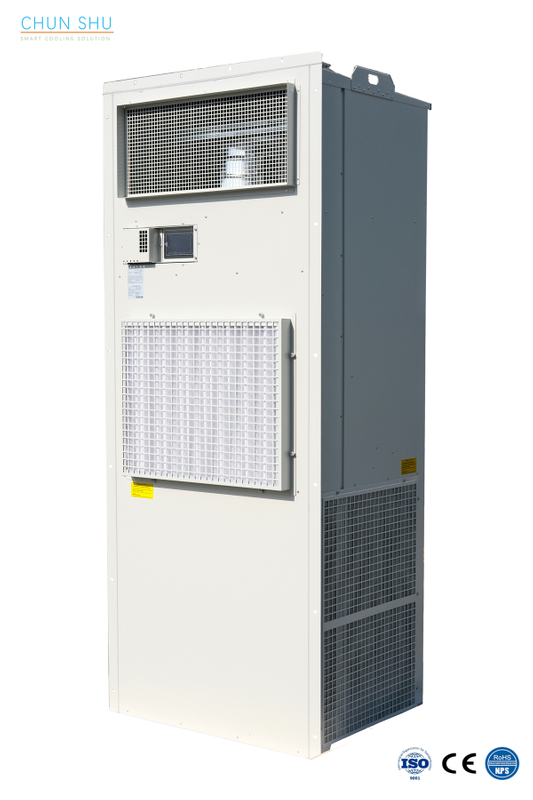

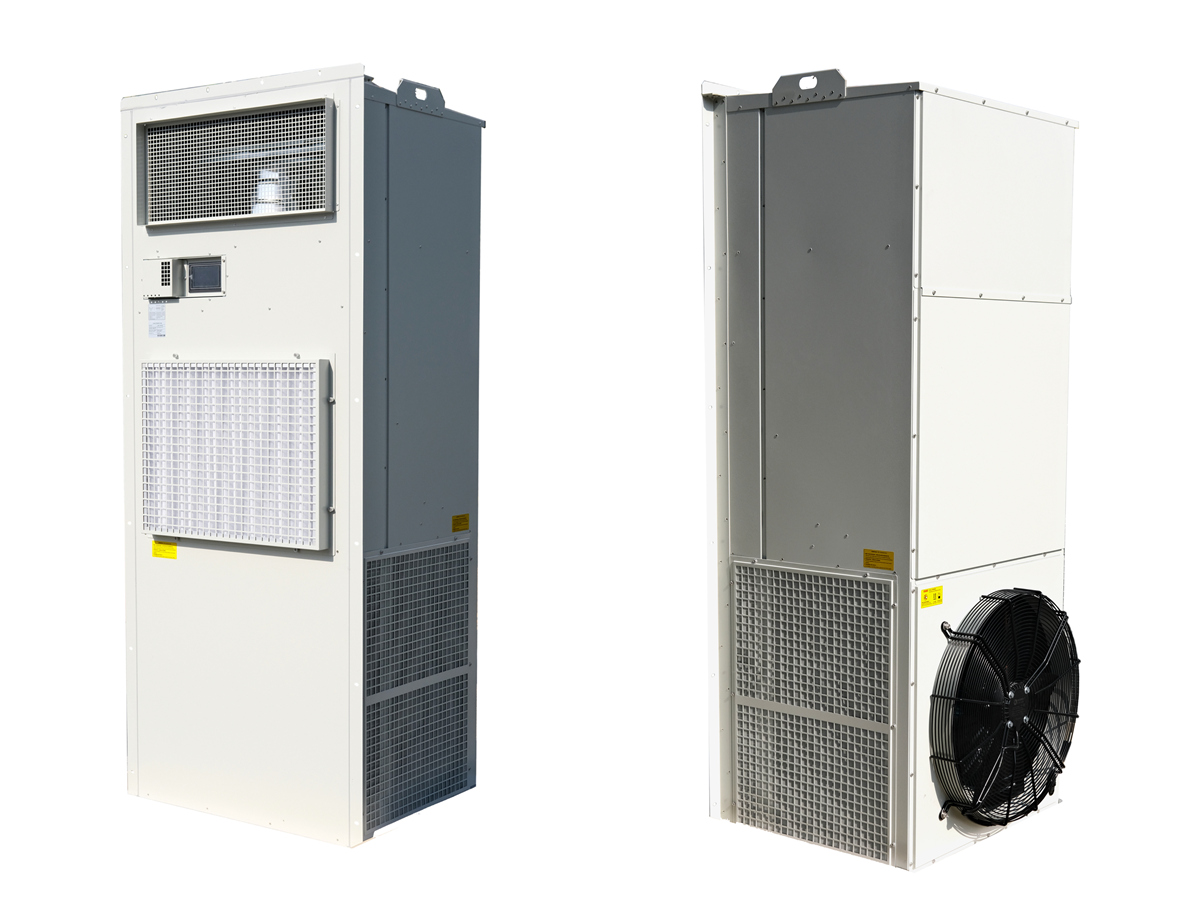

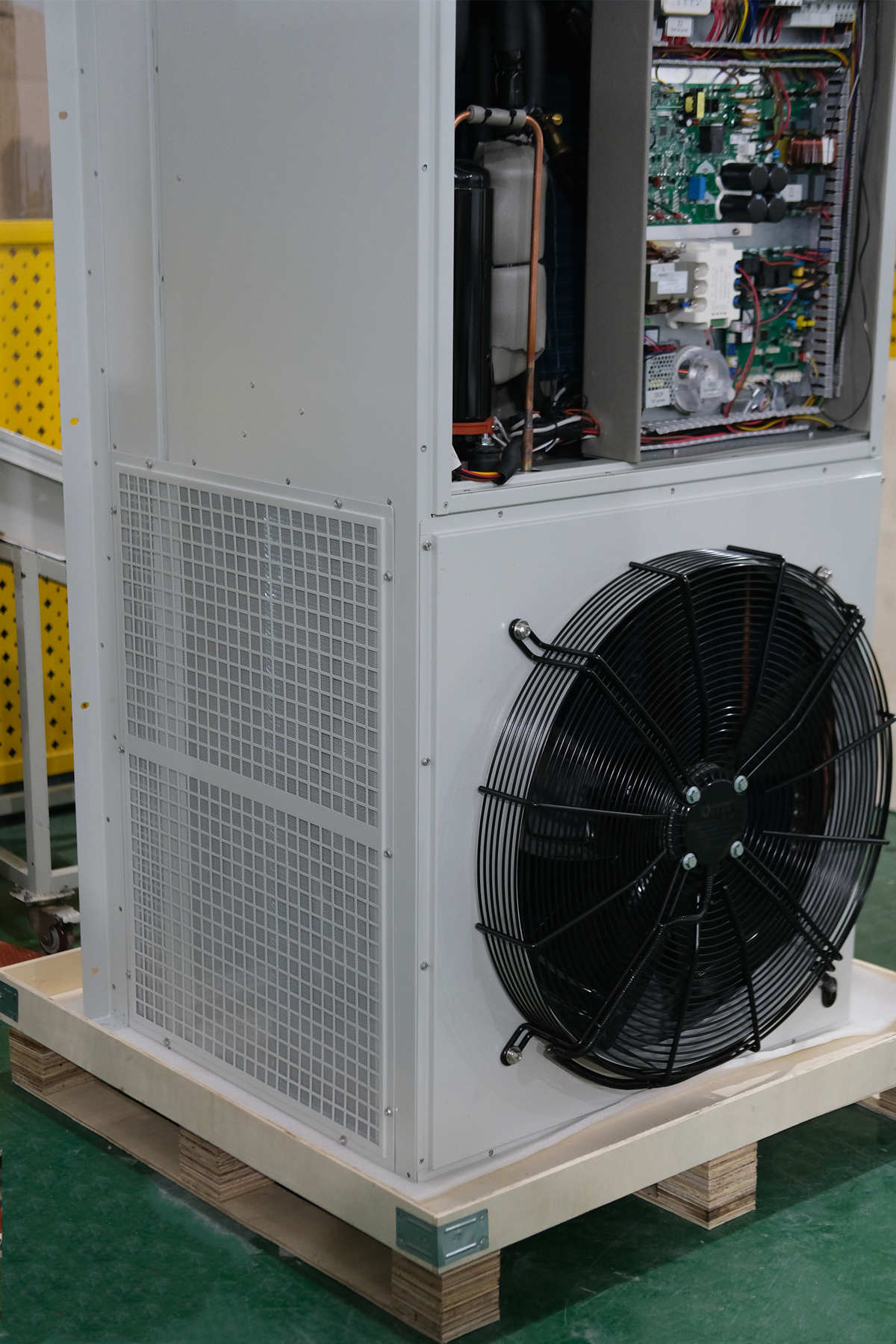

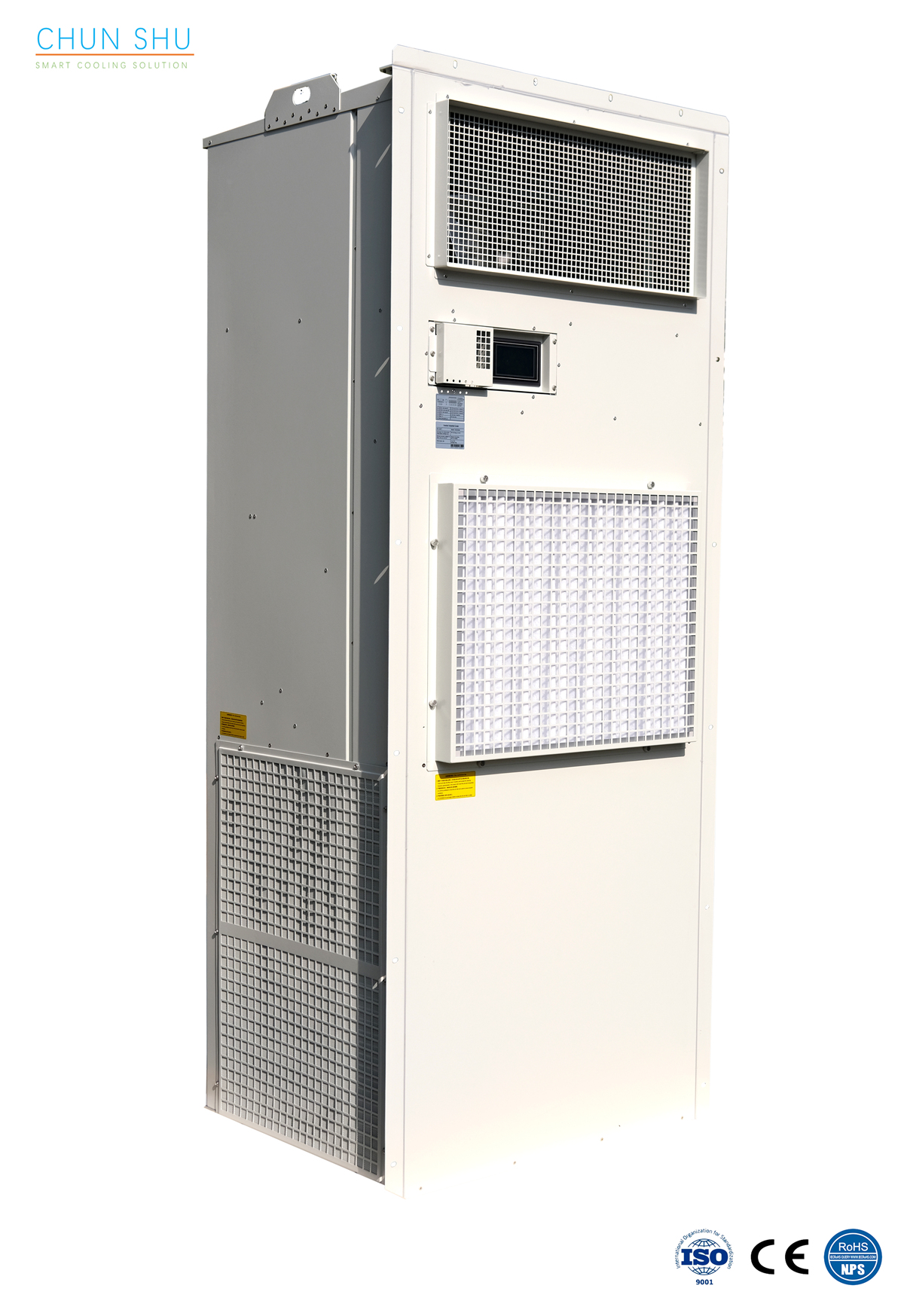

产品图片
技术参数
PRODUCT | 5KW | 7.5KW | 10.0KW | 12.5KW | 15KW | 20KW | UNIT |
Model. | CS A 50 W A | CS A 75 W A | CS A 100 W A | CS A 125 W A | CS A 150 W A | CS A 200 W A | |
No. | 94000 | 94000 | 94100 | 94100 | 94200 | 94200 | |
Power supply | 1~220VAC±15% 50Hz & 3~380AC±15% 50Hz | 3~380AC±15% 50Hz & 3~460VAC±15% 60Hz | V | ||||
Cooling capacity | 5 | 7.5 | 10.0 | 12.5 | 15 | 20 | KW |
Power consumption | 1.8 | 2.8 | 3.8 | 4.8 | 6.3 | 8.5 | KW |
Heating | 3 | 3 | 6 | 6 | 6 & 9 | 9 | KW |
Dehumidification | Yes | ||||||
Air supply mode | Up flow | W | |||||
Internal airflow | 1250 | 1400 | 2800 | 3000 | 4300 | 5200 | m³/h |
Operational temperature range | -40～+45 | ℃ | |||||
Operating humidity range | 5～95 | RH | |||||
Refrigerant | R410a | ||||||
IP Class | 55 | ||||||
Noise level | 67 | 67 | 69 | 69 | 72 | 72 | dB（A） |
Service life | 10 | Year | |||||
Net weight | 95 | 100 | 120 | 120 | 200 | 210 | Kg |
Outer dimensions W | 600 | 600 | 660 | 660 | 800 | 800 | mm |
Outer dimensions D | 320 | 320 | 400 | 400 | 703 | 703 | |
Outer dimensions H | 1300 | 1300 | 1600 | 1600 | 2100 | 2100 | |
Mounting method | Wall-mounted | ||||||
Certification | CE, RoHS | ||||||
Surface Treatment | Standard Color: SGCC+RAL7035 | ||||||
Option Features | DC variable compressor, EC fan, Filter, Condensate water vaporizing, SNMP card | ||||||
